Java組合模式

組合模式用於需要以同樣的方式的方式處理一組對象作為單個對象。組合模式根據樹結構組成對象，以表示部分以及整個層次結構。這種類型的設計模式屬於結構模式，因為此模式創建了一組對象的樹結構。

此模式創建一個包含其自身對象的組的類。 此類提供了修改其相同對象的組的方法。

我們通過以下示例展示組合模式的使用，將演示員工組織的層次結構。

實現實例

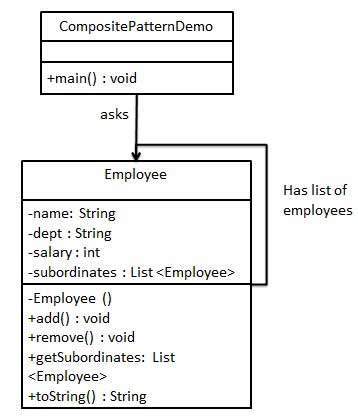

假設有一個類Employee，它作為複合模式操作類。 CompositePatternDemo這是一個演示類，將使用Employee類添加部門級別層次結構並列印所有員工。組合模式示例結構如下圖中所示 -

第1步

創建具有Employee對象列表的Employee類。

Employee.java

import java.util.ArrayList;
import java.util.List;

public class Employee {
   private String name;
   private String dept;
   private int salary;
   private List<Employee> subordinates;

   // constructor
   public Employee(String name,String dept, int sal) {
      this.name = name;
      this.dept = dept;
      this.salary = sal;
      subordinates = new ArrayList<Employee>();
   }

   public void add(Employee e) {
      subordinates.add(e);
   }

   public void remove(Employee e) {
      subordinates.remove(e);
   }

   public List<Employee> getSubordinates(){
     return subordinates;
   }

   public String toString(){
      return ("Employee :[ Name : " + name + ", dept : " + dept + ", salary :" + salary+" ]");
   }
}

第2步

使用Employee類來創建和列印員工層次結構。

CompositePatternDemo.java

public class CompositePatternDemo {
   public static void main(String[] args) {

      Employee CEO = new Employee("John","CEO", 30000);

      Employee headSales = new Employee("Robert","Head Sales", 20000);

      Employee headMarketing = new Employee("Michel","Head Marketing", 20000);

      Employee clerk1 = new Employee("Laura","Marketing", 10000);
      Employee clerk2 = new Employee("Bob","Marketing", 10000);

      Employee salesExecutive1 = new Employee("Richard","Sales", 10000);
      Employee salesExecutive2 = new Employee("Rob","Sales", 10000);

      CEO.add(headSales);
      CEO.add(headMarketing);

      headSales.add(salesExecutive1);
      headSales.add(salesExecutive2);

      headMarketing.add(clerk1);
      headMarketing.add(clerk2);

      //print all employees of the organization
      System.out.println(CEO);

      for (Employee headEmployee : CEO.getSubordinates()) {
         System.out.println(headEmployee);

         for (Employee employee : headEmployee.getSubordinates()) {
            System.out.println(employee);
         }
      }
   }
}

第3步

驗證輸出，執行上面的代碼得到以下結果 -

Employee :[ Name : John, dept : CEO, salary :30000 ]
Employee :[ Name : Robert, dept : Head Sales, salary :20000 ]
Employee :[ Name : Richard, dept : Sales, salary :10000 ]
Employee :[ Name : Rob, dept : Sales, salary :10000 ]
Employee :[ Name : Michel, dept : Head Marketing, salary :20000 ]
Employee :[ Name : Laura, dept : Marketing, salary :10000 ]
Employee :[ Name : Bob, dept : Marketing, salary :10000 ]
