Spring Security標籤庫顯示視圖

本教程介紹了如何保護視圖層，基於已登錄用戶的角色，使用Spring Security標籤來顯示/隱藏 Spring MVC Web應用程式的JSP/視圖。

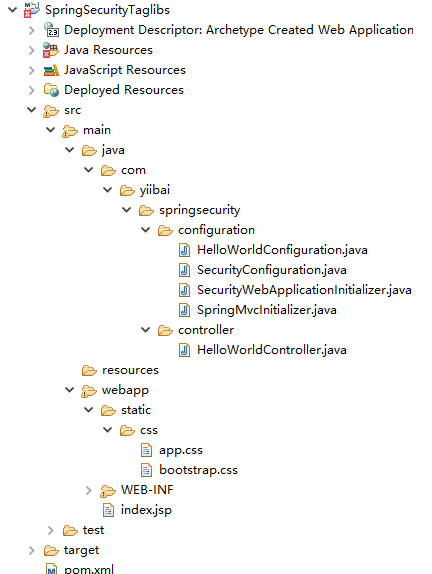

完整的工程結構如下所示 -

首先，為了使用Spring Security標籤，我們需要在pom.xml中包括 spring-security-taglibs 標記庫的依賴庫，如下圖所示：

<dependency>
			<groupId>org.springframework.security</groupId>
			<artifactId>spring-security-taglibs</artifactId>
			<version>4.0.1.RELEASE</version>
		</dependency>

然後在下一步在視圖/JSP 包括這些標籤庫。如下代碼所示 -

<%@ taglib prefix="sec" uri="http://www.springframework.org/security/tags"%>

最後，我們就可以使用Spring Security 運算式類似 hasRole，hasAnyRole 等。在視圖中，如下圖所示：

<%@ page language="java" contentType="text/html; charset=UTF-8" pageEncoding="UTF-8"%>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core"%>
<%@ taglib prefix="sec" uri="http://www.springframework.org/security/tags"%>
<html>
<head>
	<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
	<title>Welcome page</title>
</head>
<body>
	Dear <strong>${user}</strong>, Welcome to Home Page.
	<a href="<c:url value="/logout" />">Logout</a>

	<br/>
	<br/>
	<div>
		<label>View all information| This part is visible to Everyone</label>
	</div>

	<br/>
	<div>
		<sec:authorize access="hasRole('ADMIN')">
			<label><a href="#">Edit this page</a> | This part is visible only to ADMIN</label>
		</sec:authorize>
	</div>

	<br/>
	<div>
		<sec:authorize access="hasRole('ADMIN') and hasRole('DBA')">
			<label><a href="#">Start backup</a> | This part is visible only to one who is both ADMIN & DBA</label>
		</sec:authorize>
	</div>
</html>

這裏就是需要基於角色這個有選擇地顯示/隱藏視圖片段，使用Spring Security運算式在視圖中。

以下是用於這個例子的 Security 配置：

package com.zaixian.springsecurity.configuration;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Configuration;
import org.springframework.security.config.annotation.authentication.builders.AuthenticationManagerBuilder;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.configuration.EnableWebSecurity;
import org.springframework.security.config.annotation.web.configuration.WebSecurityConfigurerAdapter;

@Configuration
@EnableWebSecurity
public class SecurityConfiguration extends WebSecurityConfigurerAdapter {


	@Autowired
	public void configureGlobalSecurity(AuthenticationManagerBuilder auth) throws Exception {
		auth.inMemoryAuthentication().withUser("zaixian").password("123456").roles("USER");
		auth.inMemoryAuthentication().withUser("admin").password("123456").roles("ADMIN");
		auth.inMemoryAuthentication().withUser("dba").password("123456").roles("ADMIN","DBA");
	}

	@Override
	protected void configure(HttpSecurity http) throws Exception {

	  http.authorizeRequests()
	  	.antMatchers("/", "/home").access("hasRole('USER') or hasRole('ADMIN') or hasRole('DBA')")
	  	.and().formLogin().loginPage("/login")
	  	.usernameParameter("ssoId").passwordParameter("password")
	  	.and().exceptionHandling().accessDeniedPage("/Access_Denied");
	}
}

上面的安全配置基於XML配置格式如下所示：

<beans:beans xmlns="http://www.springframework.org/schema/security"
    xmlns:beans="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-4.1.xsd
    http://www.springframework.org/schema/security http://www.springframework.org/schema/security/spring-security-4.0.xsd">

    <http auto-config="true" >
        <intercept-url pattern="/"     access="hasRole('USER') or hasRole('ADMIN') or hasRole('DBA')" />
        <intercept-url pattern="/home" access="hasRole('USER') or hasRole('ADMIN') or hasRole('DBA')" />
        <form-login  login-page="/login"
                     username-parameter="ssoId"
                     password-parameter="password"
                     authentication-failure-url="/Access_Denied" />
    </http>

    <authentication-manager >
        <authentication-provider>
            <user-service>
                <user name="zaixian"  password="123456"  authorities="ROLE_USER" />
                <user name="admin" password="123456" authorities="ROLE_ADMIN" />
                <user name="dba"   password="123456" authorities="ROLE_ADMIN,ROLE_DBA" />
            </user-service>
        </authentication-provider>
    </authentication-manager>


</beans:beans>

下麵是控制器的完整代碼，如下所示 -

package com.zaixian.springsecurity.controller;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import org.springframework.security.core.Authentication;
import org.springframework.security.core.context.SecurityContextHolder;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.security.web.authentication.logout.SecurityContextLogoutHandler;
import org.springframework.stereotype.Controller;
import org.springframework.ui.ModelMap;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;

@Controller
public class HelloWorldController {


	@RequestMapping(value = { "/", "/home" }, method = RequestMethod.GET)
	public String homePage(ModelMap model) {
		model.addAttribute("user", getPrincipal());
		return "welcome";
	}

	@RequestMapping(value = "/Access_Denied", method = RequestMethod.GET)
	public String accessDeniedPage(ModelMap model) {
		model.addAttribute("user", getPrincipal());
		return "accessDenied";
	}

	@RequestMapping(value = "/login", method = RequestMethod.GET)
	public String loginPage() {
		return "login";
	}

	@RequestMapping(value="/logout", method = RequestMethod.GET)
	public String logoutPage (HttpServletRequest request, HttpServletResponse response) {
		Authentication auth = SecurityContextHolder.getContext().getAuthentication();
		if (auth != null){
			new SecurityContextLogoutHandler().logout(request, response, auth);
		}
		return "redirect:/login?logout";
	}

	private String getPrincipal(){
		String userName = null;
		Object principal = SecurityContextHolder.getContext().getAuthentication().getPrincipal();

		if (principal instanceof UserDetails) {
			userName = ((UserDetails)principal).getUsername();
		} else {
			userName = principal.toString();
		}
		return userName;
	}

}

應用程式的其餘部分代碼和這個系列的其他教學文章是相同的。
