Spring+Hibernate+MySql實例(注解)

在上一篇教程中，我們創建一個簡單的Java專案結構，並演示如何使用Hibernate在Spring框架來在 MySQL資料庫進行數據處理工作(插入，選擇，更新和刪除)。在本教程中，將學習如何使用Spring做同樣的事情，只不過這一次我們使用 Hibernate 的注解方式。

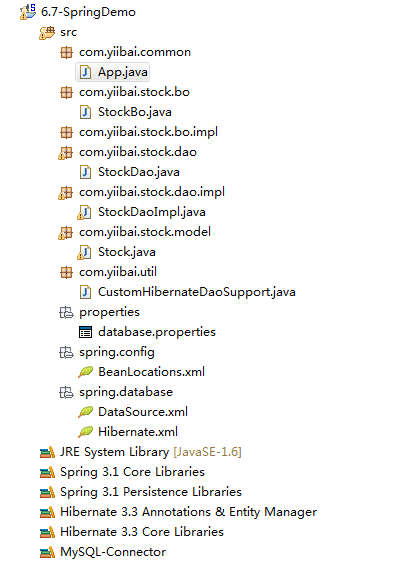

最終專案結構

最終的專案檔結構看起來應該就像下麵的圖所示：

1.創建表

在MySQL資料庫中創建一張“stock”表。 SQL語句如下：

CREATE TABLE  `zaixian`.`stock` (
  `STOCK_ID` int(10) unsigned NOT NULL AUTO_INCREMENT,
  `STOCK_CODE` varchar(10) NOT NULL,
  `STOCK_NAME` varchar(20) NOT NULL,
  PRIMARY KEY (`STOCK_ID`) USING BTREE,
  UNIQUE KEY `UNI_STOCK_NAME` (`STOCK_NAME`),
  UNIQUE KEY `UNI_STOCK_ID` (`STOCK_CODE`) USING BTREE
) ENGINE=InnoDB AUTO_INCREMENT=11 DEFAULT CHARSET=utf8;

2. Model & BO & DAO

模型中，業務對象(BO)和數據訪問對象(DAO)模式是有助於清楚地識別層，以避免弄亂專案結構。

Stock Model (Annotation)

Stock模型注解類來存儲庫存數據。

package com.zaixian.stock.model;

import javax.persistence.Column;
import javax.persistence.Entity;
import javax.persistence.GeneratedValue;
import static javax.persistence.GenerationType.IDENTITY;
import javax.persistence.Id;
import javax.persistence.Table;
import javax.persistence.UniqueConstraint;

@Entity
@Table(name = "stock", catalog = "zaixian", uniqueConstraints = {
		@UniqueConstraint(columnNames = "STOCK_NAME"),
		@UniqueConstraint(columnNames = "STOCK_CODE") })
public class Stock implements java.io.Serializable {

	private Integer stockId;
	private String stockCode;
	private String stockName;

	public Stock() {
	}

	public Stock(String stockCode, String stockName) {
		this.stockCode = stockCode;
		this.stockName = stockName;
	}

	@Id
	@GeneratedValue(strategy = IDENTITY)
	@Column(name = "STOCK_ID", unique = true, nullable = false)
	public Integer getStockId() {
		return this.stockId;
	}

	public void setStockId(Integer stockId) {
		this.stockId = stockId;
	}

	@Column(name = "STOCK_CODE", unique = true, nullable = false, length = 10)
	public String getStockCode() {
		return this.stockCode;
	}

	public void setStockCode(String stockCode) {
		this.stockCode = stockCode;
	}

	@Column(name = "STOCK_NAME", unique = true, nullable = false, length = 20)
	public String getStockName() {
		return this.stockName;
	}

	public void setStockName(String stockName) {
		this.stockName = stockName;
	}

	@Override
	public String toString() {
		return "Stock [stockCode=" + stockCode + ", stockId=" + stockId
				+ ", stockName=" + stockName + "]";
	}
}

Stock Business Object (BO))

Stock 業務對象(BO)介面和實現，它是用來存儲專案的業務功能，真正的資料庫操作(CRUD)的工作不參與這一個類，而是用一個DAO(StockDao)類來做到這一點。

package com.zaixian.stock.bo;

import com.zaixian.stock.model.Stock;

public interface StockBo {

	void save(Stock stock);
	void update(Stock stock);
	void delete(Stock stock);
	Stock findByStockCode(String stockCode);
}

使這個類中的 Spring IoC容器的 bean“stockBo”自動裝配庫存DAO類。

package com.zaixian.stock.bo.impl;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import com.zaixian.stock.bo.StockBo;
import com.zaixian.stock.dao.StockDao;
import com.zaixian.stock.model.Stock;

@Service("stockBo")
public class StockBoImpl implements StockBo{

	@Autowired
	StockDao stockDao;

	public void setStockDao(StockDao stockDao) {
		this.stockDao = stockDao;
	}

	public void save(Stock stock){
		stockDao.save(stock);
	}

	public void update(Stock stock){
		stockDao.update(stock);
	}

	public void delete(Stock stock){
		stockDao.delete(stock);
	}

	public Stock findByStockCode(String stockCode){
		return stockDao.findByStockCode(stockCode);
	}
}

Stock Data Access Object

Stock DAO介面和實現。在上一個教程中，DAO類是直接擴展“HibernateDaoSupport“。但注釋方式不可能做到這一點，因為沒有辦法從DAO類會話到工廠bean自動裝配。解決方法是創建一個自定義類(CustomHibernateDaoSupport)，並擴展了“HibernateDaoSupport”和自動裝配會話工廠，DAO類擴展了這個類。

package com.zaixian.stock.dao;

import com.zaixian.stock.model.Stock;

public interface StockDao {

	void save(Stock stock);
	void update(Stock stock);
	void delete(Stock stock);
	Stock findByStockCode(String stockCode);

}

package com.zaixian.util;

import org.hibernate.SessionFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.orm.hibernate3.support.HibernateDaoSupport;

public abstract class CustomHibernateDaoSupport extends HibernateDaoSupport
{
    @Autowired
    public void anyMethodName(SessionFactory sessionFactory)
    {
        setSessionFactory(sessionFactory);
    }
}

package com.zaixian.stock.dao.impl;

import java.util.List;

import org.springframework.stereotype.Repository;

import com.zaixian.stock.dao.StockDao;
import com.zaixian.stock.model.Stock;
import com.zaixian.util.CustomHibernateDaoSupport;

@Repository("stockDao")
public class StockDaoImpl extends CustomHibernateDaoSupport implements StockDao{

	public void save(Stock stock){
		getHibernateTemplate().save(stock);
	}

	public void update(Stock stock){
		getHibernateTemplate().update(stock);
	}

	public void delete(Stock stock){
		getHibernateTemplate().delete(stock);
	}

	public Stock findByStockCode(String stockCode){
		List list = getHibernateTemplate().find(
                     "from Stock where stockCode=?",stockCode
                );
		return (Stock)list.get(0);
	}

}

5.資源配置

建立一個目錄resources在“project_name/main/java/'，它將用於存儲Spring，Hibernate等配置檔。

Spring Configuration

資料庫關聯….

創建一個屬性檔(database.properties)來存放資料庫的詳細資訊，把它放到“resources/properties”檔夾中。一個很好的做法是將資料庫資訊和Spring bean配置在不同的檔。

database.properties

jdbc.driverClassName=com.mysql.jdbc.Driver
jdbc.url=jdbc:mysql://localhost:3306/zaixian
jdbc.username=root
jdbc.password=password

創建一個“dataSource” bean配置檔(DataSource.xml)存放資料庫資訊，並從database.properties導入的屬性，把它放到“resources/database”檔夾中。

DataSource.xml

<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans-2.5.xsd">

<bean
class="org.springframework.beans.factory.config.PropertyPlaceholderConfigurer">
	<property name="location">
		<value>properties/database.properties</value>
	</property>
</bean>

<bean id="dataSource"
         class="org.springframework.jdbc.datasource.DriverManagerDataSource">
	<property name="driverClassName" value="${jdbc.driverClassName}" />
	<property name="url" value="${jdbc.url}" />
	<property name="username" value="${jdbc.username}" />
	<property name="password" value="${jdbc.password}" />
</bean>

</beans>

Hibernate related….

創建一個會話工廠bean的配置檔(Hibernate.xml)，把它放到“resources/database”檔夾中。在注釋必須使用AnnotationSessionFactoryBean 來代替 LocalSessionFactoryBean，並注明您的注解模型類在“annotatedClasses”屬性，而不是'mappingResources'屬性。

Hibernate.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans-2.5.xsd">

<!-- Hibernate session factory -->
<bean id="sessionFactory"
class="org.springframework.orm.hibernate3.annotation.AnnotationSessionFactoryBean">

    <property name="dataSource">
      <ref bean="dataSource"/>
    </property>

    <property name="hibernateProperties">
       <props>
         <prop key="hibernate.dialect">org.hibernate.dialect.MySQLDialect</prop>
         <prop key="hibernate.show_sql">true</prop>
       </props>
    </property>

    <property name="annotatedClasses">
	<list>
		<value>com.zaixian.stock.model.Stock</value>
	</list>
    </property>

    </bean>
</beans>

導入所有的 Spring bean 配置檔合併為一個檔(BeanLocations.xml)，把它放到“resources/config”檔夾。

BeanLocations.xml

導入Spring資料庫配置並使用 Spring自動掃描功能。

<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:context="http://www.springframework.org/schema/context"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans-2.5.xsd
http://www.springframework.org/schema/context
http://www.springframework.org/schema/context/spring-context-2.5.xsd">

	<!-- Database Configuration -->
	<import resource="../database/DataSource.xml"/>
	<import resource="../database/Hibernate.xml"/>

	<!-- Auto scan the components -->
	<context:component-scan
		base-package="com.zaixian.stock" />

</beans>

6. 運行它

把所有的檔和配置整合，運行它。

package com.xuhuhu.common;

import org.springframework.context.ApplicationContext;
import org.springframework.context.support.ClassPathXmlApplicationContext;

import com.zaixian.stock.bo.StockBo;
import com.zaixian.stock.model.Stock;

public class App
{
    public static void main( String[] args )
    {
    	ApplicationContext appContext =
    	  new ClassPathXmlApplicationContext("spring/config/BeanLocations.xml");

    	StockBo stockBo = (StockBo)appContext.getBean("stockBo");

    	/** insert **/
    	Stock stock = new Stock();
    	stock.setStockCode("7668");
    	stock.setStockName("HAIO");
    	stockBo.save(stock);

    	/** select **/
    	Stock stock2 = stockBo.findByStockCode("7668");
    	System.out.println(stock2);

    	/** update **/
    	stock2.setStockName("HAIO-1");
    	stockBo.update(stock2);

    	/** delete **/
    	stockBo.delete(stock2);

    	System.out.println("Done");
    }
}

輸出結果:

Hibernate: insert into zaixian.stock (STOCK_CODE, STOCK_NAME) values (?, ?)
Hibernate: select stock0_.STOCK_ID as STOCK1_0_, stock0_.STOCK_CODE as STOCK2_0_, stock0_.STOCK_NAME as STOCK3_0_ from zaixian.stock stock0_ where stock0_.STOCK_CODE=?
Stock [stockCode=7667, stockId=3, stockName=HAIO]
Hibernate: update zaixian.stock set STOCK_CODE=?, STOCK_NAME=? where STOCK_ID=?
Hibernate: delete from zaixian.stock where STOCK_ID=?
Done

總結

所有的Spring，Hibernate相關類和配置檔都進行注解，它只是保留在XML檔中的資料庫的詳細資訊。就個人而言，我不使用太多的注釋功能，因為在某種程度上可能需要一些解決方法，像上面的“CustomHibernateDaoSupport'擴展'HibernateDaoSupport”。在Spring和Hibernate的XML檔的成熟是一個更優的選擇。

代碼下載 - http://pan.baidu.com/s/1bewLiu
