Spring Boot啟用Swagger2

Swagger2是一個開源專案，用於為RESTful Web服務生成REST API文檔。 它提供了一個用戶介面，可通過Web流覽器訪問RESTful Web服務。

要在Spring Boot應用程式中啟用Swagger2，需要在構建配置檔中添加以下依賴項。

<dependency>
   <groupId>io.springfox</groupId>
   <artifactId>springfox-swagger2</artifactId>
   <version>2.7.0</version>
</dependency>
<dependency>
   <groupId>io.springfox</groupId>
   <artifactId>springfox-swagger-ui</artifactId>
   <version>2.7.0</version>
</dependency>

對於Gradle用戶，請在build.gradle 檔中添加以下依賴項。

compile group: 'io.springfox', name: 'springfox-swagger2', version: '2.7.0'
compile group: 'io.springfox', name: 'springfox-swagger-ui', version: '2.7.0'

現在，在主Spring Boot應用程式中添加@EnableSwagger2注釋。 @EnableSwagger2注釋用於為Spring Boot應用程式啟用Swagger2。

主Spring Boot應用程式的代碼如下所示 -

package com.zaixian.swaggerdemo;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import springfox.documentation.swagger2.annotations.EnableSwagger2;

@SpringBootApplication
@EnableSwagger2
public class SwaggerDemoApplication {
   public static void main(String[] args) {
      SpringApplication.run(SwaggerDemoApplication.class, args);
   }
}

接下來，創建Docket Bean以為Spring Boot應用程式配置Swagger2。需要定義一個基礎包來為Swagger2配置REST API。

@Bean
public Docket productApi() {
      return new Docket(DocumentationType.SWAGGER_2).select()
         .apis(RequestHandlerSelectors.basePackage("com.zaixian.swaggerdemo")).build();
}

現在，在主Spring Boot應用程式類檔中添加這個bean，主Spring Boot應用程式類看起來如下所示 -

package com.zaixian.swaggerdemo;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.context.annotation.Bean;

import springfox.documentation.builders.RequestHandlerSelectors;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.plugins.Docket;
import springfox.documentation.swagger2.annotations.EnableSwagger2;

@SpringBootApplication
@EnableSwagger2
public class SwaggerDemoApplication {
   public static void main(String[] args) {
      SpringApplication.run(SwaggerDemoApplication.class, args);
   }
   @Bean
   public Docket productApi() {
      return new Docket(DocumentationType.SWAGGER_2).select()
         .apis(RequestHandlerSelectors.basePackage("com.zaixian.swaggerdemo")).build();
   }
}

現在，在構建配置檔中添加以下Spring Boot Starter Web依賴項以編寫REST端點，如下所示 -

Maven用戶可以在pom.xml 檔中添加以下依賴項 -

<dependency>
   <groupId>org.springframework.boot</groupId>
   <artifactId>spring-boot-starter-web</artifactId>
</dependency>

Gradle用戶可以在build.gradle 檔中添加以下依賴項 -

compile('org.springframework.boot:spring-boot-starter-web')

現在，這裏顯示了在Rest Controller檔中構建兩個簡單的RESTful Web服務GET和POST的代碼 -

package com.zaixian.swaggerdemo;

import java.util.ArrayList;
import java.util.List;

import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.RestController;

@RestController
public class SwaggerAPIController {
   @RequestMapping(value = "/products", method = RequestMethod.GET)
   public List<String> getProducts() {
      List<String> productsList = new ArrayList<>();
      productsList.add("Honey");
      productsList.add("Almond");
      return productsList;
   }
   @RequestMapping(value = "/products", method = RequestMethod.POST)
   public String createProduct() {
      return "Product is saved successfully";
   }
}

完整的構建配置檔如下 -

Maven構建檔 - pom.xml 代碼如下:

<?xml version = "1.0" encoding = "UTF-8"?>
<project xmlns = "http://maven.apache.org/POM/4.0.0"
   xmlns:xsi = "http://www.w3.org/2001/XMLSchema-instance"
   xsi:schemaLocation = "http://maven.apache.org/POM/4.0.0
   http://maven.apache.org/xsd/maven-4.0.0.xsd">
   <modelVersion>4.0.0</modelVersion>

   <groupId>com.zaixian</groupId>
   <artifactId>swagger-demo</artifactId>
   <version>0.0.1-SNAPSHOT</version>
   <packaging>jar</packaging>
   <name>swagger-demo</name>
   <description>Demo project for Spring Boot</description>

   <parent>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-starter-parent</artifactId>
      <version>1.5.9.RELEASE</version>
      <relativePath /> <!-- lookup parent from repository -->
   </parent>

   <properties>
      <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
      <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
      <java.version>1.8</java.version>
   </properties>

   <dependencies>
      <dependency>
         <groupId>org.springframework.boot</groupId>
         <artifactId>spring-boot-starter-web</artifactId>
      </dependency>

      <dependency>
         <groupId>org.springframework.boot</groupId>
         <artifactId>spring-boot-starter-test</artifactId>
         <scope>test</scope>
      </dependency>

      <dependency>
         <groupId>io.springfox</groupId>
         <artifactId>springfox-swagger2</artifactId>
         <version>2.7.0</version>
      </dependency>

      <dependency>
         <groupId>io.springfox</groupId>
         <artifactId>springfox-swagger-ui</artifactId>
         <version>2.7.0</version>
      </dependency>
   </dependencies>

   <build>
      <plugins>
         <plugin>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-maven-plugin</artifactId>
         </plugin>
      </plugins>
   </build>

</project>

Gradle構建檔 - build.gradle -

buildscript {
   ext {
      springBootVersion = '1.5.9.RELEASE'
   }
   repositories {
      mavenCentral()
   }
   dependencies {
      classpath("org.springframework.boot:spring-boot-gradle-plugin:${springBootVersion}")
   }
}
apply plugin: 'java'
apply plugin: 'eclipse'
apply plugin: 'org.springframework.boot'

group = 'com.zaixian'
version = '0.0.1-SNAPSHOT'
sourceCompatibility = 1.8

repositories {
   mavenCentral()
} dependencies {
   compile('org.springframework.boot:spring-boot-starter-web')
   testCompile('org.springframework.boot:spring-boot-starter-test')
   compile group: 'io.springfox', name: 'springfox-swagger2', version: '2.7.0'
   compile group: 'io.springfox', name: 'springfox-swagger-ui', version: '2.7.0'
}

可以創建可執行的JAR檔，並使用以下Maven或Gradle命令運行Spring Boot應用程式。

對於Maven，可以使用以下命令 -

mvn clean install

在“BUILD SUCCESS”之後，可以在target目錄下找到JAR檔。

對於Gradle，可以使用此命令 -

gradle clean build

在“BUILD SUCCESSFUL”之後，可以在build/libs目錄下找到JAR檔。

現在，使用命令運行JAR檔 -

java –jar <JARFILE>

現在，應用程式將在Tomcat端口8080上啟動。

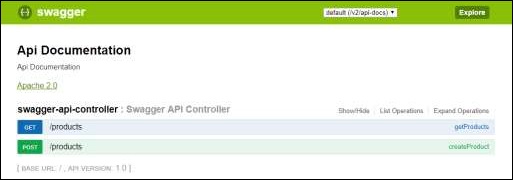

現在，在Web流覽器URL => http://localhost:8080/swagger-ui.html , 並查看Swagger API功能，結果如下所示：
