在Swing菜單中添加分隔符號

下麵的示例展示了如何在Java Swing應用程式的菜單項中添加分隔符號。

使用以下API -

• JMenuBar - 創建菜單欄。
• JMenu - 創建菜單。
• JMenuItem - 創建菜單項。
• JMenu.addSeparator() - 在菜單中添加分隔符號。

示例

package com.zaixian.swingdemo;

import java.awt.*;
import java.awt.event.*;
import javax.swing.*;

import java.awt.*;
import java.awt.event.*;

public class SwingTester {
   private JFrame mainFrame;
   private JLabel headerLabel;
   private JLabel statusLabel;
   private JPanel controlPanel;

   public SwingTester(){
      prepareGUI();
   }
   public static void main(String[] args){
       SwingTester  swingMenuDemo = new SwingTester();
      swingMenuDemo.showMenuDemo();
   }
   private void prepareGUI(){
      mainFrame = new JFrame("在Swing菜單中添加分隔符號");
      mainFrame.setSize(400,400);
      mainFrame.setLayout(new GridLayout(3, 1));

      headerLabel = new JLabel("",JLabel.CENTER );
      statusLabel = new JLabel("",JLabel.CENTER);
      statusLabel.setSize(350,100);

      mainFrame.addWindowListener(new WindowAdapter() {
         public void windowClosing(WindowEvent windowEvent){
            System.exit(0);
         }
      });
      controlPanel = new JPanel();
      controlPanel.setLayout(new FlowLayout());

      mainFrame.add(headerLabel);
      mainFrame.add(controlPanel);
      mainFrame.add(statusLabel);
      mainFrame.setVisible(true);
   }
   private void showMenuDemo(){
      //create a menu bar
      final JMenuBar menuBar = new JMenuBar();

      //create menus
      JMenu fileMenu = new JMenu("檔");
      JMenu editMenu = new JMenu("編輯");
      final JMenu aboutMenu = new JMenu("關於");
      final JMenu linkMenu = new JMenu("鏈接");

      //create menu items
      JMenuItem newMenuItem = new JMenuItem("新建");
      newMenuItem.setMnemonic(KeyEvent.VK_N);
      newMenuItem.setActionCommand("New");

      JMenuItem openMenuItem = new JMenuItem("打開");
      openMenuItem.setActionCommand("Open");

      JMenuItem saveMenuItem = new JMenuItem("保存");
      saveMenuItem.setActionCommand("Save");

      JMenuItem exitMenuItem = new JMenuItem("退出");
      exitMenuItem.setActionCommand("Exit");

      JMenuItem cutMenuItem = new JMenuItem("剪切");
      cutMenuItem.setActionCommand("Cut");

      JMenuItem copyMenuItem = new JMenuItem("複製");
      copyMenuItem.setActionCommand("Copy");

      JMenuItem pasteMenuItem = new JMenuItem("粘貼");
      pasteMenuItem.setActionCommand("Paste");

      MenuItemListener menuItemListener = new MenuItemListener();

      newMenuItem.addActionListener(menuItemListener);
      openMenuItem.addActionListener(menuItemListener);
      saveMenuItem.addActionListener(menuItemListener);
      exitMenuItem.addActionListener(menuItemListener);
      cutMenuItem.addActionListener(menuItemListener);
      copyMenuItem.addActionListener(menuItemListener);
      pasteMenuItem.addActionListener(menuItemListener);

      final JCheckBoxMenuItem showWindowMenu = new JCheckBoxMenuItem("顯示關於", true);
      showWindowMenu.addItemListener(new ItemListener() {
         public void itemStateChanged(ItemEvent e) {

            if(showWindowMenu.getState()){
               menuBar.add(aboutMenu);
            } else {
               menuBar.remove(aboutMenu);
            }
         }
      });
      final JRadioButtonMenuItem showLinksMenu = new JRadioButtonMenuItem(
         "顯示鏈接", true);
      showLinksMenu.addItemListener(new ItemListener() {
         public void itemStateChanged(ItemEvent e) {

            if(menuBar.getMenu(3)!= null){
               menuBar.remove(linkMenu);
               mainFrame.repaint();
            } else {
               menuBar.add(linkMenu);
               mainFrame.repaint();
            }
         }
      });
      //add menu items to menus
      fileMenu.add(newMenuItem);
      fileMenu.add(openMenuItem);
      fileMenu.add(saveMenuItem);
      fileMenu.addSeparator();
      fileMenu.add(showWindowMenu);
      fileMenu.addSeparator();
      fileMenu.add(showLinksMenu);
      fileMenu.addSeparator();
      fileMenu.add(exitMenuItem);

      editMenu.add(cutMenuItem);
      editMenu.add(copyMenuItem);
      editMenu.add(pasteMenuItem);

      //add menu to menubar
      menuBar.add(fileMenu);
      menuBar.add(editMenu);
      menuBar.add(aboutMenu);
      menuBar.add(linkMenu);

      //add menubar to the frame
      mainFrame.setJMenuBar(menuBar);
      mainFrame.setVisible(true);
   }
   class MenuItemListener implements ActionListener {
      public void actionPerformed(ActionEvent e) {
         statusLabel.setText(e.getActionCommand() + " JMenuItem clicked.");
      }
   }
}

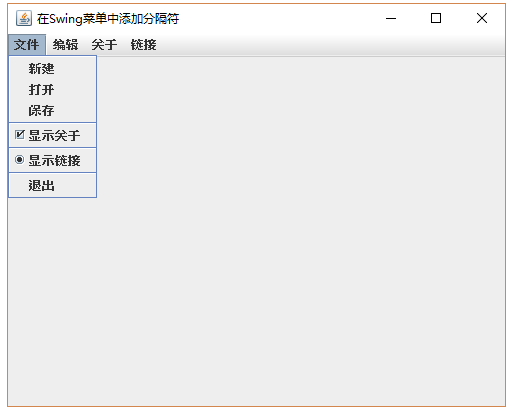

執行上面示例代碼，得到以下結果：
