Spring的Object/XML映射将对象转换到XML，或反之亦然。这个过程也被称为
- XML Marshalling – 转换对象到XML
- XML UnMarshalling – 转换XML到对象
在本教程中，我们将介绍如何使用 Spring 的 OXM 来做转换， Object <--- Spring oxm ---> XML.
注: 为什么使用 Spring的OXM 有好处？请阅读本 Spring 对象/XML映射的文章。
1. 一个简单对象
一个简单的对象，之后将其转换成 XML 文件。
package com.zaixian.core.model;
public class Customer {
String name;
int age;
boolean flag;
String address;
//standard getter, setter and toString() methods.
}
3. Marshaller 和 Unmarshaller
这个类将处理通过 Spring 的 OXM 接口的转换： Marshaller 和 Unmarshaller.
package com.zaixian.core;
import java.io.FileInputStream;
import java.io.FileOutputStream;
import java.io.IOException;
import javax.xml.transform.stream.StreamResult;
import javax.xml.transform.stream.StreamSource;
import org.springframework.oxm.Marshaller;
import org.springframework.oxm.Unmarshaller;
public class XMLConverter {
private Marshaller marshaller;
private Unmarshaller unmarshaller;
public Marshaller getMarshaller() {
return marshaller;
}
public void setMarshaller(Marshaller marshaller) {
this.marshaller = marshaller;
}
public Unmarshaller getUnmarshaller() {
return unmarshaller;
}
public void setUnmarshaller(Unmarshaller unmarshaller) {
this.unmarshaller = unmarshaller;
}
public void convertFromObjectToXML(Object object, String filepath)
throws IOException {
FileOutputStream os = null;
try {
os = new FileOutputStream(filepath);
getMarshaller().marshal(object, new StreamResult(os));
} finally {
if (os != null) {
os.close();
}
}
}
public Object convertFromXMLToObject(String xmlfile) throws IOException {
FileInputStream is = null;
try {
is = new FileInputStream(xmlfile);
return getUnmarshaller().unmarshal(new StreamSource(is));
} finally {
if (is != null) {
is.close();
}
}
}
}
4. Spring配置
在 Spring 的 bean 配置文件，注入 CastorMarshaller 作为 XML 绑定框架。
<beans xmlns="http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-3.0.xsd"> <bean id="XMLConverter" class="com.zaixian.core.XMLConverter"> <property name="marshaller" ref="castorMarshaller" /> <property name="unmarshaller" ref="castorMarshaller" /> </bean> <bean id="castorMarshaller" class="org.springframework.oxm.castor.CastorMarshaller" /> </beans>
5. 测试
运行它
package com.zaixian.core;
import java.io.IOException;
import org.springframework.context.ApplicationContext;
import org.springframework.context.support.ClassPathXmlApplicationContext;
import com.zaixian.core.model.Customer;
public class App {
private static final String XML_FILE_NAME = "customer.xml";
public static void main(String[] args) throws IOException {
ApplicationContext appContext = new ClassPathXmlApplicationContext("App.xml");
XMLConverter converter = (XMLConverter) appContext.getBean("XMLConverter");
Customer customer = new Customer();
customer.setName("zaixian");
customer.setAge(28);
customer.setFlag(true);
customer.setAddress("Haikou haidiandao");
System.out.println("Convert Object to XML!");
//from object to XML file
converter.convertFromObjectToXML(customer, XML_FILE_NAME);
System.out.println("Done \n");
System.out.println("Convert XML back to Object!");
//from XML to object
Customer customer2 = (Customer)converter.convertFromXMLToObject(XML_FILE_NAME);
System.out.println(customer2);
System.out.println("Done");
}
}
输出结果
Convert Object to XML! Done Convert XML back to Object! Customer [name=zaixian, age=28, flag=true, address=Haikou Haidiandao] Done
下面的 XML 文件“customer.xml”将在项目的根文件夹中生成。
File : customer.xml
<?xml version="1.0" encoding="UTF-8"?> <customer flag="true" age="28"> <address>Haikou Haidiandao</address> <name>zaixian</name> </customer>
XML映射
等等，为什么flag和age可转换为属性？这是一种来控制哪些字段应为属性或元素的使用的方式？ 当然，您可以使用 Castor XML映射定义对象 和XML之间的关系。
创建以下映射文件，并把它放到你的项目的 classpath。
File : mapping.xml
<mapping> <class name="com.zaixian.core.model.Customer"> <map-to xml="customer" /> <field name="age" type="integer"> <bind-xml name="age" node="attribute" /> </field> <field name="flag" type="boolean"> <bind-xml name="flag" node="element" /> </field> <field name="name" type="string"> <bind-xml name="name" node="element" /> </field> <field name="address" type="string"> <bind-xml name="address" node="element" /> </field> </class> </mapping>

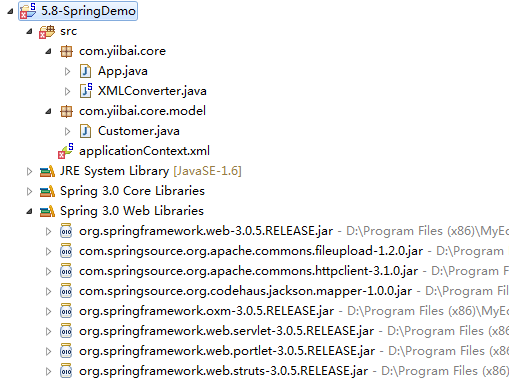

在Spring bean配置文件，上述通过“mappingLocation”注入 mapping.xml 到 CastorMarshaller 。注：这里需要加入一个 org.springframework.oxm.***.jar 包，这个包函数在 MyEclipse 库的 Spring 3.0 Web Libaries中。
<beans xmlns="http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-3.0.xsd"> <bean id="XMLConverter" class="com.zaixian.core.XMLConverter"> <property name="marshaller" ref="castorMarshaller" /> <property name="unmarshaller" ref="castorMarshaller" /> </bean> <bean id="castorMarshaller" class="org.springframework.oxm.castor.CastorMarshaller" > <property name="mappingLocation" value="classpath:mapping.xml" /> </bean> </beans>
再次测试，XML文件“customer.xml”将被更新。
File : customer.xml
<?xml version="1.0" encoding="UTF-8"?> <customer age="28"> <flag>true</flag> <name>zaixian</name> <address>Haikou Haidiandao</address> </customer>
