如何使用java绘制几何形状到图片？

在Java语言编程中，如何使用Java绘制几何形状到图片？

注意：需要访问网址：http://book2s.com/java/jar/o/opencv/download-opencv-3.2.0-0.html ， 下载一个OpenCV软件包。这里下载最新版本：opencv-3.2.0-vc14.exe并解压此文件到D:\software\opencv目录中。

项目结构如下图所示 -

添加一个用户自定义库：OpenCV3.2，并指配置构建路径为：D:\software\opencv\opencv\build\java\x64，如下图所示 -

注：可参考： http://blog.csdn.net/shawncheer/article/details/51098456

以下是使用Java绘制几何形状到图片的程序 -

package com.zaixian;

import org.opencv.core.Core;
import org.opencv.core.Mat;
import org.opencv.core.Point;
import org.opencv.core.Scalar;

import org.opencv.imgcodecs.Imgcodecs;
import org.opencv.imgproc.Imgproc;

public class DrawingshapesOnImage {
    public static void main(String args[]) {

        // Loading the OpenCV core library
        System.loadLibrary(Core.NATIVE_LIBRARY_NAME);

        // Reading the Image from the file and storing it in to a Matrix object
        String file = "images/zhonglou.jpg";
        Mat matrix = Imgcodecs.imread(file);

        /*
         * //Drawing an Ellipse Imgproc.ellipse(matrix, //Matrix obj of the
         * image new RotatedRect( new Point(20, 150),new Size(260, 180), 180 ),
         * //RotatedRect(Point c, Size s, double a) new Scalar(0, 0, 255),
         * //Scalar object for color 10); //Thickness of the line
         */

        // Drawing a Rectangle
        Imgproc.rectangle(matrix, // Matrix obj of the image
                new Point(10, 10), // p1
                new Point(390, 390), // p2
                new Scalar(0, 100, 255), // Scalar object for color
                5); // Thickness of the line

        // Writing image
        Imgcodecs.imwrite("images/drawingShapesOnImage.jpg", matrix);
        System.out.println("Image processed");
    }
}

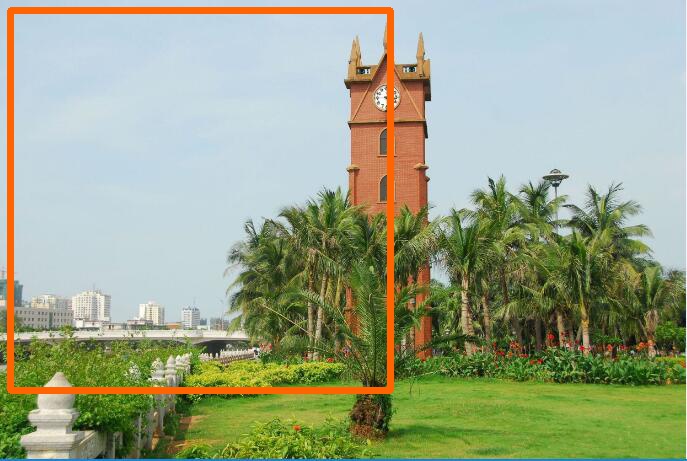

执行上面示例代码，得到以下结果 -

Image processed

原图 -

在执行上面示例代码成功后，应该会在 F:\worksp\javaexamples\java_opencv\images 目录中有看到生成一个文件：drawingShapesOnImage.jpg 。

问题

F:\worksp\javaexamples\java_opencv
Exception in thread "main" java.lang.UnsatisfiedLinkError: no opencv_java320 in java.library.path
    at java.lang.ClassLoader.loadLibrary(Unknown Source)
    at java.lang.Runtime.loadLibrary0(Unknown Source)
    at java.lang.System.loadLibrary(Unknown Source)
    at com.zaixian.CopyAndPasteAnImage.main(CopyAndPasteAnImage.java:13)

解决上述问题可通过参考： http://blog.csdn.net/shawncheer/article/details/51098456
